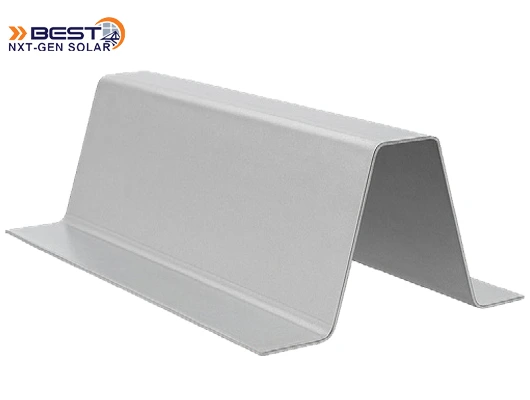

HAT Section
Specifications
- Material Type: Black HR/CR, ZM, Pre–Galvanized
- Yield Strength: 250 – 550 MPa
- Thickness: 0.6 – 1.6 mm
- Web: 25 – 90 mm
- Height: 40 – 150 mm
- Flange: 5 – 40 mm
- Angle: 65°, 75°, 90°
- Capacity: 30,000 mt/p.a

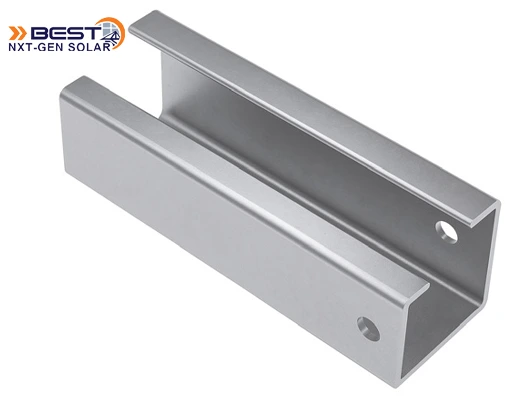

C&U Profile
Specifications
- Material Type: Black HR/CR, ZM, Pre–Galvanized
- Yield Strength: 250 – 550 MPa
- Thickness: 0.6 – 2.5 mm
- Web: 40 – 250 mm
- Height: 0 – 80 mm
- Lip: 6 – 30 mm
- Nominal Forming Speed: 10 – 50 m/min
- Capacity: 30,000 mt/p.a
Z Section
Specifications
- Material Type: Black HRC, ZM, Pre-Galvanized
- Yield Strength: 250 – 550 MPa
- Height (Web): 100 – 250 mm
- Flange (Width): 40 – 75 mm
- Lip : 10 – 25 mm
- Length: Customisable up to 12 metres
- Thickness: 1.5 – 2.7 mm
- Capacity: 10,000 MT per annum
 & Hot Dip.jpg)

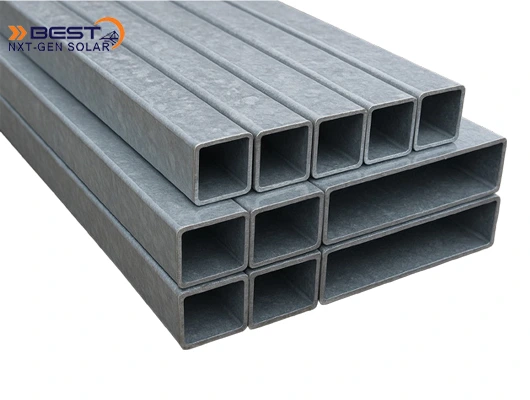

Pre-Galvanized (GP) & Hot Dip Galvanized Tubes & MS Pipes
Specifications
- Material Type: MS, Hot Dip Galvanized, Pre–Galvanized
- Yield Strength: 250 – 550 MPa
- Round Hollow Sections: 114 to 219 OD
- Square Hollow Sections: 19X19 to 200X200 mm
- Rectangular Hollow Sections: 26X13 to 200X100 mm
- Thickness: 0.7 to 8 mm
- Length: 4.0 to 12 m
- Capacity: 30,000 mt/p.a
